LED lighting uniformity in image sensors

LED lighting uniformity in image sensors

Introduction

In image sensors, lighting uniformity is a very critical factor, which directly affects the image quality, especially in scenarios with high requirements for image quality such as medical imaging, industrial detection, and security monitoring. In order to obtain high-quality images, researchers and engineers have been exploring various lighting technologies to achieve the best lighting uniformity. In recent years, with the development of LED (light-emitting diode) technology, it has gradually become a very promising lighting solution. This article will discuss the lighting uniformity of LED in image sensors, as well as how to improve the lighting uniformity of image sensors by optimizing LED lighting design.

2. The uniformity of LED lighting in image sensors
　　LED (Light Emitting Diode) has the advantages of high brightness, low energy consumption, long life, small size, and high temperature resistance, making it an ideal lighting source for image sensors. However, there are still some issues with the uniformity of LED lighting, which is mainly due to the non-uniformity of LED lighting, that is, the non-uniform distribution of light emitted by LED in space. The non-uniformity of LED lighting is mainly caused by the following factors:

Non-uniformity of LED chips: Due to differences in manufacturing processes and materials, the light output characteristics of different LED chips are different, leading to the non-uniformity of LED lighting.

Non-uniformity of drive circuit: The design and parameter settings of the drive circuit will affect the output characteristics of the LED light source, thereby affecting the uniformity of lighting.
　　Environmental factors: Environmental factors such as temperature and humidity will also affect the output characteristics of LED light sources, thereby affecting the uniformity of lighting.

To improve the uniformity of LED lighting, researchers have proposed various methods, such as using multiple LED light sources in combination, adopting LED array lighting, and using LED drive circuit optimization technology.

3. Optimization methods for LED lighting uniformity

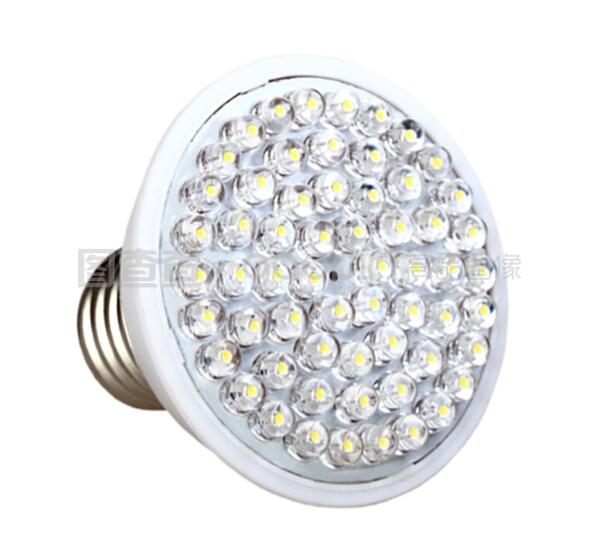

Combination of LED light sources: By combining multiple LED light sources, the uniformity of lighting can be effectively improved. Researchers can combine multiple LED light sources in a certain arrangement to achieve the best uniformity of lighting. For example, researchers can arrange multiple LED light sources at a certain angle to form an LED array to improve the uniformity of lighting.

Optimization technology of LED drive circuit: By optimizing the design and parameter settings of the LED drive circuit, the uniformity of LED lighting can be effectively improved. Researchers can adopt adaptive control technology to dynamically adjust the parameters of the drive circuit according to the actual output characteristics of the LED light source to achieve the best uniformity of lighting.

Control of environmental factors: By controlling environmental factors such as temperature and humidity, the uniformity of LED lighting can be effectively improved. Researchers can adopt temperature control technology to adjust the working environment temperature of LED light sources to achieve the best uniformity of lighting.
　　4. Conclusion

In summary, the uniformity of LED lighting in image sensors is an important research direction. By optimizing the design and parameter settings of LED light sources, as well as controlling environmental factors, the uniformity of LED lighting can be effectively improved, thereby enhancing the image quality of image sensors. In the future, with the continuous development of LED technology, we have every reason to believe that the issue of uniformity of LED lighting in image sensors will be better resolved.
